Manufacturer of Finned Tubes, Fin Tube & Finned Pipe

Used in Heat Exchangers, Boiler Economizers, Coolers and Heaters

Finbraze®

Finbraze®

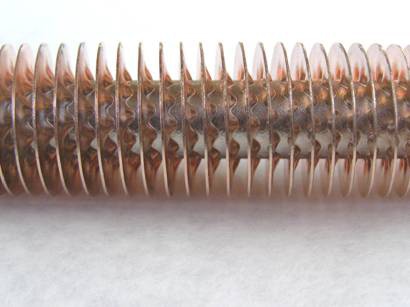

Finbraze® Finned Tubing The brazed finned tubing from Fin Tube Products, Inc. is the most suitable for higher-temperature applications. The Finbraze® process creates a metallurgical bond between the tube and fin, which results in a stress-free, uniform, and non-porous contact, allowing for thinner tube walls compared to a welded fin-to-tube joint. The Finbraze® process is done in-house with our Controlled Atmospheric Brazing Furnace. Advantages to the Finbraze® production of finned tubing include increased heat transfer, improved strength and durability, and a more cost-effec...
Cladfin®

Cladfin®

Cladfin® is a process that applies a nickel chrome coating to the surface of a tube and fin. This coating diffuses into the surface of the tube and fin, creating a high heat and corrosion-resistant bond. Cladfin® is an alternative to all stainless steel construction, with the added benefit of an increased heat transfer rate. It is suitable for use in high-temperature, high-pressure environments. CLADFIN® Finned Tube Manufacturer CLADFIN® are quality fins and finned tube products that offer a variety of benefits over other finned tubes on the market. ...
Mini-Fin

Mini-Fin

Mini-Fin Tubes Fin Tube Products, Inc. is a leading miniature custom manufacturing company in developing Mini Fin Tubing. They are available in sizes descending from 1/4″ to a diameter as small as .015″. The fin micro tubes are used in various applications in different industries. With our in-house capabilities, we can meet our customers’ specific requirements and preferences. The mini fin tube is helically coiled and attached to the tube by a soldered or FINBRAZE® fin. Additionally, we collaborate with engineers to create a prototype design that will go through pilot t...
Edge Tension

Edge Tension

Edge Tension Fin Tubes Edge tension tubes are available in similar or dissimilar metals. They are recommended for low-temperature (up to 250°F) air-cooled heat exchangers and moderate duty in normal ambient air applications. These edge tension tubes offer numerous advantages: This type of fin-to-tube attachment can be used with common carbon steel black pipe and aluminum tubing and various other metals. Edge Tension Finned Tubing Fin Tube Products, Inc. offers edge tension finned tubes in similar or dissimilar metals. Atmospheric brazing allows for the use of differ...
Stamped/Plate Fin

Stamped/Plate Fin

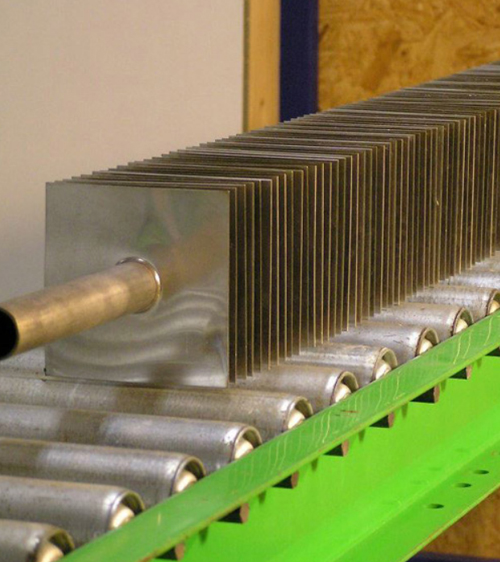

A stamped fin is a type of fin that can be manufactured in almost any shape or size. Despite the ability to create stamped fins in various shapes, square and round stamped fins are the most common. Fin Tube Products, Inc. offers stamped/plate fins manufactured in almost any shape or size, but square and round are the most common. The fin is attached to the tube in our Controlled Atmospheric Brazing Furnace (CABF) with our FINBRAZE® process. This style of a fin is commonly referred to as a plate fin. What is stamped or plate fin? Stamped fin or plate fin hea...
“L” Foot

“L” Foot

“L” Footed Finned Tubing L-footed fin tubing is designed to provide uniform fin spacing and prevent separation and movement under cycling conditions within the 450°F range. The L foot provides a greater surface area for the fin to attach to the tubing, and the shoulder edge helps to interlock the fins. This design helps to improve the heat transfer performance of the tubing and prevent potential damage from cycling. L-Footed Fin Tubing “L” Foot or Shoulder tension construction assures uniform fin spacing, rigidly interlocked by the fin radius overlap over the ex...
Coils and Bending

Coils and Bending

Fin Tube Products, Inc. is a leading manufacturer of finned tube coils for heat exchangers. We offer a wide range of finned tube coils in prototype and production runs. Our finned tube coils can be made from various metals, including copper, carbon, steel, stainless steel, and other common metal types. We also offer various bend radius options to meet your specific needs. Our finned tube coils are easy to install and provide an efficient way to transfer heat between two fluids. Heat Exchanger Coils As a heat exchanger coil manufacturer, Fin tube, Inc offers various tubing sizes an...
about banner
about img

About Fin Tube Products

Fin Tube Products, Inc. specializes in Helical-Wound Brazed Finned Tubing. We are tooled however, to provide many of the fin to tube attachment methods currently available in today’s market.

Our Finned tubing and finned pipe are used in heat exchangers, boiler economizers, coolers, and heaters. Our small diameter to miniature finned tubes (hypodermic) can be found in cryostats and cryogenic coolers for military use, or in the medical profession for the cryoablation of tumors.

With the use of our in house Atmospheric Brazing Furnace complete control is maintained over the critical brazing process. By avoiding the out sourcing of our brazing your turn around time is improved, and complete quality control is maintained in house.

Fin Tube Products, Inc. offers one of the worlds most diversified finned tubing product lines. Although specializing in a helically wound brazed finned tube, we offer many of the other forms of fin to tube attachments available in today’s market. Our Finbraze® and Cladfin® fin tubes are available in straight lengths, shapes or coils. We offer prototype or production runs. Pricing and delivery is competitive. Our quality is second to none.
